PC Emergency Module and Electronic Ballasts 3/4×18/33 Combo (89818236) TRIDONIC

PC Emergency Module and Electronic Ballasts 3/4×18/33 Combo (89818236) TRIDONIC

Emergency Module and Electronic Ballasts used specifically for emergency lighting with compact fluorescent lamps. Provides constant light less than 200 milliseconds after a mains power outage.

PC Emergency Module and Electronic Ballasts 3/4×18/33 Combo (89818236) TRIDONIC Product Details:

• Combination of electronic ballast and emergency lighting unit
• For T5 and T8 fluorescent lamps
• For manual testing of the emergency lighting function
• 5-year guarantee
• Dimensions: 424mm length x 42mm width x 28mm height

Properties:

• Lightweight one-part emergency lighting unit
• For 1, 2, 3 or 4-lamp luminaires
• Simple wiring
• No compatibility problems
• 1 or 3 h rated duration
• Lamp warm start in normal operation
• IDC (insulation displacement connection)
• Green charge status display LED
• Checking the emergency lighting function by interrupting the unswitched phase
• Optional test switch
• Electronically controlled battery charging
• Deep discharge protection
• Short-circuit-proof battery connection
• Polarity reversal protection for battery

Batteries:

• High-temperature cells
• NiCd or NiMH batteries
• D or LA cells
• Blade terminals for simple connection
• 4-year design life
• 1-year guarantee

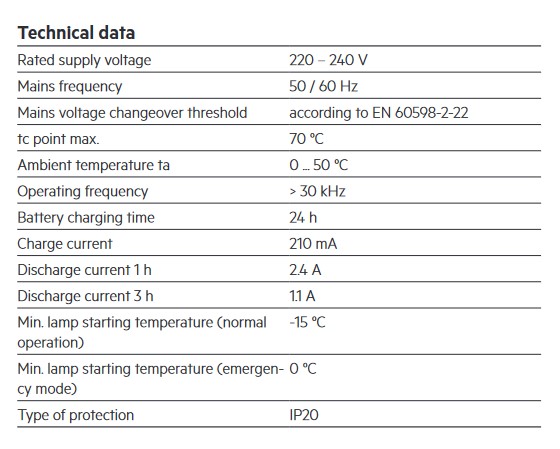

Further technical information can be found in Images.
