PC Emergency Module and Electronic Ballasts 2×55-5 TCL Combo (89899925) TRIDONIC

SKU: 89899925TR Categories: , , Tags: , , , , , , , , , , , , ,

£47.40

*Price include VAT

36 in stock

Product Details:

  • Combination of electronic ballast and emergency lighting unit
  • For compact fluorescent lamps
  • For manual testing of the emergency lighting function
  • 5-year guarantee
  • Dimensions: 122mm length x 101mm width x 30mm height

Properties:

  • Lightweight one-part emergency lighting unit
  • Simple wiring
  • No compatibility problems
  • 3 h rated duration for TC-DD lamp variants
  • 1 and 3 h rated duration for TC-D/T lamp variants
  • Selectable operating time (jumper)
  • Lamp warm start in normal operation
  • Filament heating in emergency operation for TC-D/T lamps
  • AC operation of all lamps
  • Automatic restart after relamping in normal operation
  • Green charge status display LED
  • Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)
  • Optional test switch
  • Checking the emergency lighting function by interrupting the unswitched phase
  • Small dimensions
  • IDC (insulation displacement connection)
  • Electronically controlled battery charging
  • Deep discharge protection
  • Short-circuit-proof battery connection
  • Polarity reversal protection for battery

Batteries:

  • Separate battery pack
  • High-temperature cells
  • NiCd or NiMH batteries
  • D, Cs or LA cells
  • 4-year design life
  • 1-year guarantee

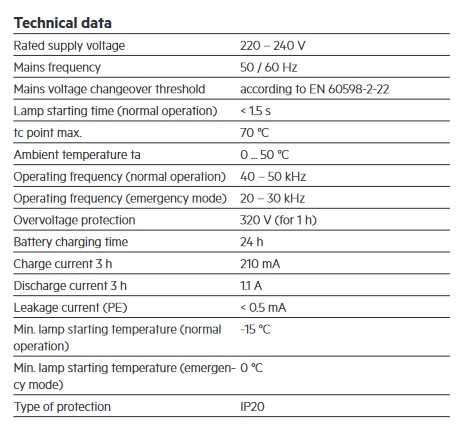

Further technical information can be found in Images.

The price shown excludes VAT

PC Emergency Module and Electronic Ballasts 2×55-5 TCL Combo (89899925) TRIDONIC

Emergency Module and Electronic Ballasts used specifically for emergency lighting with compact fluorescent lamps. Provides constant light less than 200 milliseconds after a mains power outage.

PC Emergency Module and Electronic Ballasts 2×55-5 TCL Combo (89899925) TRIDONIC Product Details:

  • Combination of electronic ballast and emergency lighting unit
  • For TC-L compact fluorescent lamps
  • For manual testing of the emergency lighting function
  • 5-year guarantee
  • Dimensions: 424mm length x 42mm width x 28mm height

Properties:

  • Lightweight one-part emergency lighting unit
  • Simple wiring
  • No compatibility problems
  • 3 h rated duration
  • Lamp warm start in normal operation
  • Automatic restart after relamping in normal operation
  • Green charge status display LED
  • Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)
  • Checking the emergency lighting function by interrupting the unswitched phase
  • IDC terminals for automatic and manual wiring
  • Optional test switch
  • Electronically controlled battery charging
  • Deep discharge protection
  • Short-circuit-proof battery connection
  • Polarity reversal protection for battery

Batteries:

  • High-temperature cells
  • NiCd or NiMH batteries
  • D or LA cells
  • Blade terminals for simple connection
  • 4-year design life
  • 1-year guarantee

Further technical information can be found in Images.
